AutoCAD Plant 3D

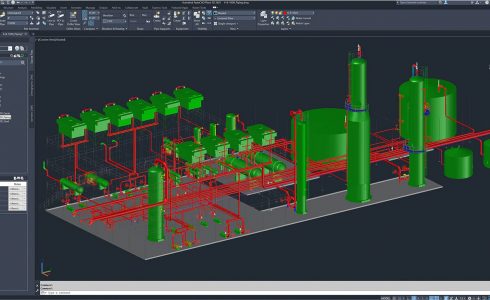

AutoCAD Plant 3D adds 3D models, including piping, equipment, support structures, generation of isometric, and orthographic drawings.

AutoCAD Plant 3D About Course

Course Overview

AutoCAD Plant 3D adds 3D models, including piping, equipment, support structures, generation of isometric, and orthographic drawings. The AutoCAD Plant 3D toolset is utilized by designers and engineers to demonstrate and record measure plants in 3D. AutoCAD Plant 3D programming empowers plant planners and architects to proficiently create P&IDs, and afterward coordinate them into a 3D plant configuration model.

With AutoCAD Plant 3D you quickly create 3D plant models using parametric equipment modeling, structural steel libraries, and project-specific piping specifications using industry-standard piping catalogs. Also, you can create and edit piping orthographic drawings, automate the production of piping isometrics and automate project-specific reporting

Learning Outcome

Upon completion of this course, participants will be able to:

Gain proficiency with the fundamental territories of AutoCAD Plant 3D and through involved activities, acquire fitness with the utilization of AutoCAD Plant 3D and its capacities.
How to work on your project using the Project Manager which contains apparatuses that assist you with making, open and add drawings, and perform different assignments, add and control of the venture utilizing Project Setup, add additional subtleties for drawing utilizing File Name Format.
Work on P&ID PIP workspace and tools to make P&ID drawings, admittance to the Color plot, add hardware.
How to create, place equipment in the model, and altering too. Adding spouts or altering when it’s required. What’s P&ID line rundown and how could utilize it to put and confirm lines and parts. Strategies to use for steering pipe in the 3D model. Adding pipe support and control it height.
Configure style for channeling isometric and spool drawing, and set substance objective for each.
Arrange the default settings for BOM tables for showing on the Ortho Drawings. How to Access print/plot instrument. Arrangement a PID attracting to be distributed. How to Recognize the Report Creator.
